Ver.2での変更点
- ・エアロゾルLUTの改良
- ・サングリント補正の改良
- ・水中モデルの改良
- ・QAフラグ変更
- ・代替校正のVer2対応
Ver.3での変更点
- ・エアロゾルLUTの改良
- ・近赤外帯の水中反射率（ρw）の推定法の変更
- ・QA_flagの変更
- ・Mask_for_statisticsの変更
- ・代替校正係数の変更
- ・負のNWLR補正の追加
- ・TAUA_670, TAUA_865の補正式の導入
格納物理量
| Ver.1,2,3 |
Description |
| Line_tai93 |
TAI93 at each line |
| NWLR_380 |
Normalized Water Leaving Radiance(NWLR) at 380.0 nm |
| NWLR_412 |
Normalized Water Leaving Radiance(NWLR) at 412.0 nm |
| NWLR_443 |
Normalized Water Leaving Radiance(NWLR) at 443.0 nm |
| NWLR_490 |
Normalized Water Leaving Radiance(NWLR) at 490.0 nm |
| NWLR_530 |
Normalized Water Leaving Radiance(NWLR) at 530.0 nm |
| NWLR_565 |
Normalized Water Leaving Radiance(NWLR) at 565.0 nm |
| NWLR_670 |
Normalized Water Leaving Radiance(NWLR) at 673.5 nm |
| PAR |
Photosynthetically Available Radiation |
| QA_flag |
|
| TAUA_670 |
Aerosol Optical Thickness(TauA) at 673.5 |
| TAUA_865 |
Aerosol Optical Thickness(TauA) at 868.5 |
QA_flag情報
Ver.1
Ver.2
Ver.3
Ver.1(Sample Image)

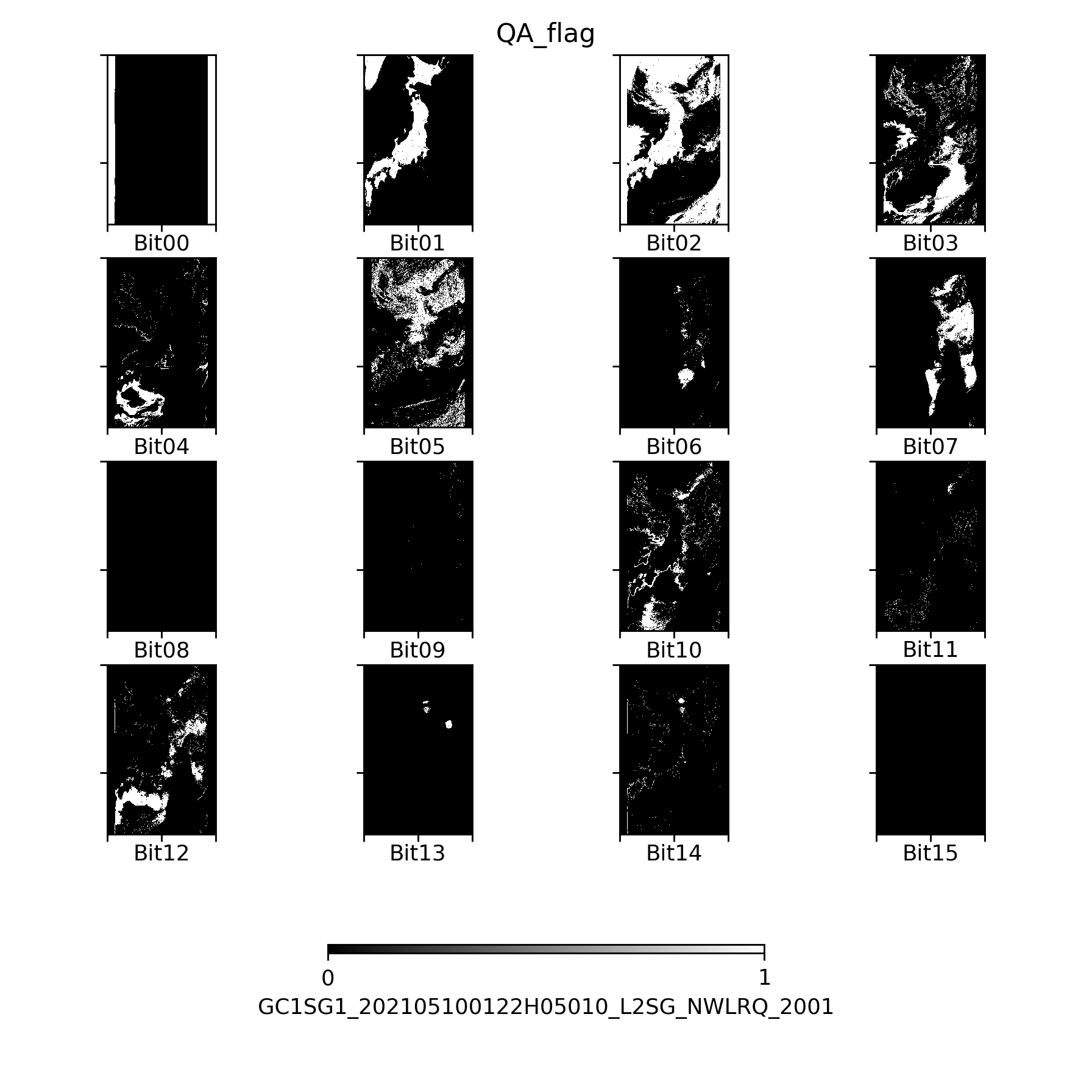

Ver.2(Sample Image)

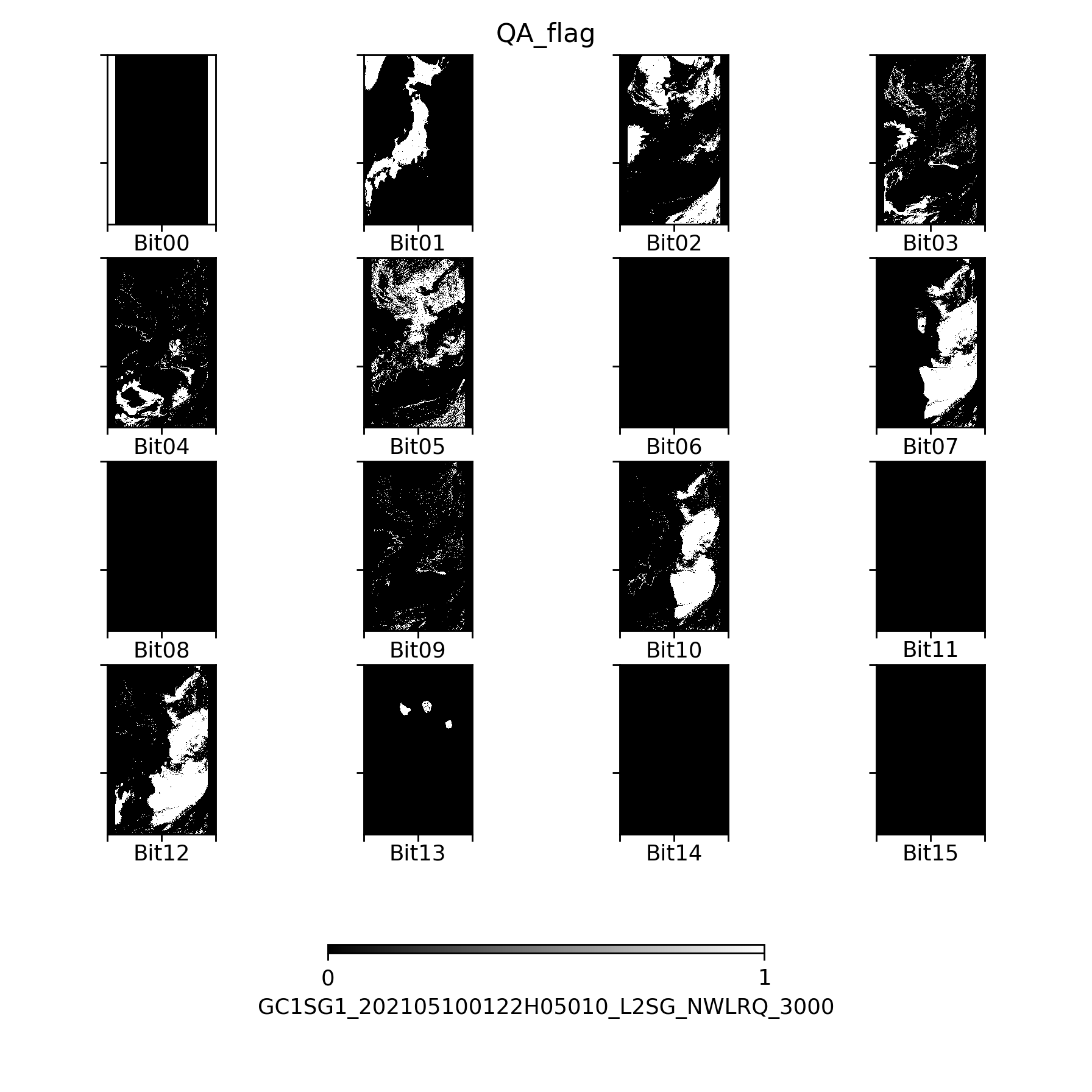

Ver.3(Sample Image)
| Bit |
Data name |
Description |
NWLR_380-670_L3_mask* |
PAR_L3_mask* |
TAUA_670,865_L3_mask* |
| 0 |
DATAMISS |
1つ以上のチャンネルで観測データがない |
1 |
1 |
1 |
| 1 |
LAND |
陸画素 |
1 |
0 |
1 |
| 2 |
ATMFAIL |
大気補正失敗 |
1 |
0 |
1 |
| 3 |
CLDICE |
明らかな雲、または雪氷 (高反射率) |
1 |
0 |
1 |
| 4 |
CLDAFFCTD |
雲の影響(雲近傍、薄い/1画素以下の雲)を受けた画素 |
1 |
0 |
1 |
| 5 |
STRAYLIGHT |
迷光が予期された画素 (L1Bからの引継ぎ) |
0 |
0 |
0 |
| 6 |
HIGLINT |
強いサングリントと推定された画素 (大気補正はされない) |
1 |
0 |
1 |
| 7 |
MODGLINT |
中程度のサングリントと推定された画素 |
1 |
0 |
1 |
| 8 |
HISOLZ |
閾値より低い太陽天頂角 |
1 |
0 |
1 |
| 9 |
HITAUA |
閾値より低いエアロゾルの光学的厚さ@865nm |
1 |
0 |
1 |
| 10 |
EPSOUT |
イプシロンが規定の範囲を超えた画素 (大気補正警告) |
0 |
0 |
0 |
| 11 |
OVERITER |
NIR大気補正において反復計算が収束しなかった画素 |
0 |
0 |
0 |
| 12 |
NEGNLW |
1つ以上のチャンネルで負の海水反射率がある |
1 |
0 |
1 |
| 13 |
HIGHWS |
閾値より海表面風速が強い画素 |
0 |
0 |
0 |
| 14 |
TURBIDW |
Case-2懸濁水 |
0 |
0 |
0 |
| 15 |
reserved |
空き |
0 |
0 |
0 |
* 1は統計処理時にマスクされるBitを意味します。
QA_flagについてはこちらをご参照ください。
| Bit |
Data name |
Description |
NWLR_380-670_L3_mask* |
PAR_L3_mask* |
TAUA_670,865_L3_mask* |
| 0 |
DATAMISS |
1つ以上のチャンネルで観測データがない |
1 |
1 |
1 |
| 1 |
LAND |
陸画素 |
1 |
0 |
1 |
| 2 |
ATMFAIL |
大気補正失敗 |
1 |
0 |
1 |
| 3 |
CLDICE |
明らかな雲、または雪氷 (高反射率) |
1 |
0 |
1 |
| 4 |
CLDAFFCTD |
雲の影響(雲近傍、薄い/1画素以下の雲)を受けた画素 |
1 |
0 |
1 |
| 5 |
STRAYLIGHT |
迷光が予期された画素 (L1Bからの引継ぎ) |
0 |
0 |
0 |
| 6 |
HIGLINT |
強いサングリントと推定された画素 (大気補正はされない) |
1 |
0 |
1 |
| 7 |
MODGLINT |
中程度のサングリントと推定された画素 |
1 |
0 |
1 |
| 8 |
HISOLZ |
閾値より低い太陽天頂角 |
1 |
0 |
1 |
| 9 |
HITAUA |
閾値より低いエアロゾルの光学的厚さ@865nm |
0 |
0 |
0 |
| 10 |
GAMMA-OUT |
ガンマが規定の範囲を超えた画素 (大気補正警告) |
0 |
0 |
0 |
| 11 |
OVERITER |
NIR大気補正において反復計算が収束しなかった画素 |
0 |
0 |
0 |
| 12 |
NEGNLW |
1つ以上のチャンネルで負の海水反射率がある |
0 |
0 |
0 |
| 13 |
HIGHWS |
閾値より海表面風速が強い画素 |
0 |
0 |
0 |
| 14 |
ATM-METHOD |
NIR大気補正:0, SWIR大気補正: 1 |
0 |
0 |
0 |
| 15 |
reserved |
空き |
0 |
0 |
0 |
* 1は統計処理時にマスクされるBitを意味します。
QA_flagについてはこちらをご参照ください。
| Bit |
Data name |
Description |
NWLR_380-670_L3_mask* |
PAR_L3_mask* |
TAUA_670,865_L3_mask* |
| 0 |
DATAMISS |
1つ以上のチャンネルで観測データがない |
1 |
1 |
1 |
| 1 |
LAND |
陸画素 |
1 |
0 |
1 |
| 2 |
ATMFAIL |
大気補正失敗 |
1 |
0 |
1 |
| 3 |
CLDICE |
明らかな雲、または雪氷 (高反射率) |
1 |
0 |
1 |
| 4 |
CLDAFFCTD |
雲の影響(雲近傍、薄い/1画素以下の雲)を受けた画素 |
1 |
0 |
1 |
| 5 |
STRAYLIGHT |
迷光が予期された画素 (L1Bからの引継ぎ) |
0 |
0 |
0 |
| 6 |
HIGLINT |
強いサングリントと推定された画素 (大気補正はされない) |
1 |
0 |
1 |
| 7 |
MODGLINT |
中程度のサングリントと推定された画素 |
0 |
0 |
0 |
| 8 |
HISOLZ |
閾値より低い太陽天頂角 |
1 |
0 |
1 |
| 9 |
HITAUA |
閾値より低いエアロゾルの光学的厚さ@865nm |
0 |
0 |
0 |
| 10 |
GAMMA-OUT |
ガンマが規定の範囲を超えた画素 (大気補正警告) |
0 |
0 |
0 |
| 11 |
OVERITER |
NIR大気補正において反復計算が収束しなかった画素 |
0 |
0 |
0 |
| 12 |
NEGNLW |
1つ以上のチャンネルで負の海水反射率がある |
0 |
0 |
0 |
| 13 |
HIGHWS |
閾値より海表面風速が強い画素 |
0 |
0 |
0 |
| 14 |
reserved |
空き |
0 |
0 |
0 |
| 15 |
reserved |
空き |
0 |
0 |
0 |
* 1は統計処理時にマスクされるBitを意味します。
QA_flagについてはこちらをご参照ください。
Attribute情報
Ver.1
Ver.2
Ver.3
| Data_name |
Attribute |
Remarks |
| Attribute of Image_data |
| Attribute of Image_data |
Number_of_lines |
5980 |
Variable |
| Number_of_pixels |
5000 |
Variable |
| Image_projection |
L1B reference grid |
|
| Grid_interval |
250 |
250m または 1km |
| Grid_interval_unit |
meter |
|
| Line_tai93 |
Line_tai93
64-bit floating-point |
Data_description |
TAI93 at each line |
|
| Unit |
second |
|
| Error_value |
-1 |
|
| Maximum_valid_value |
999999999 |
|
| Minimum_valid_value |
0 |
|
| Dim0 |
L1B-lines |
|
| NWLR_380 |
NWLR_380
16-bit unsigned integer |
Offset |
-10 |
|
| Slope |
0.00125 |
|
| Rrs_slope |
0.00000114454 |
|
| Rrs_offset |
-0.00915631 |
|
| Rrs_unit |
sr^-1 |
|
| Data_description |
Normalized Water Leaving Radiance(NWLR) at 380.0 nm [W/m^2/sr/um] = DN * Slope + Offset; Remote Sensing Reflectance(Rrs) at 380.0 nm [sr^-1] = DN * Rrs_slope + Rrs_offset |
|
| Unit |
W/m^2/sr/um |
|
| Mask_for_statistics |
5087 |
詳細: QA_flag情報(～L3_mask) |
| Spatial_resolution |
250 |
250m または 1km |
| Spatial_resolution_unit |
meter |
|
| Error_DN |
65535 |
|
| Maximum_valid_DN |
65534 |
|
| Minimum_valid_DN |
0 |
|
| Center_wavelength |
380 |
|
| Center_wavelength_unit |
nm |
|
| Band_width |
10 |
|
| Band_width_unit |
nm |
|
| F0 |
1129.58 |
|
| F0_unit |
W/m^2/um |
|
| Dim0 |
Line grids |
|
| Dim1 |
Pixel grids |
|
| NWLR_412 |
NWLR_412
16-bit unsigned integer |
Offset |
-10 |
|
| Slope |
0.00125 |
|
| Rrs_slope |
0.000000730075 |
|
| Rrs_offset |
-0.0058406 |
|
| Rrs_unit |
sr^-1 |
|
| Data_description |
Normalized Water Leaving Radiance(NWLR) at 412.0 nm [W/m^2/sr/um] = DN * Slope + Offset; Remote Sensing Reflectance(Rrs) at 412.0 nm [sr^-1] = DN * Rrs_slope + Rrs_offset |
|
| Unit |
W/m^2/sr/um |
|
| Mask_for_statistics |
5087 |
詳細: QA_flag情報(～L3_mask) |
| Spatial_resolution |
250 |
250m または 1km |
| Spatial_resolution_unit |
meter |
|
| Error_DN |
65535 |
|
| Maximum_valid_DN |
65534 |
|
| Minimum_valid_DN |
0 |
|
| Center_wavelength |
412 |
|
| Center_wavelength_unit |
nm |
|
| Band_width |
10 |
|
| Band_width_unit |
nm |
|
| F0 |
1770.84 |
|
| F0_unit |
W/m^2/um |
|
| Dim0 |
Line grids |
|
| Dim1 |
Pixel grids |
|
| NWLR_443 |
NWLR_443
16-bit unsigned integer |
Offset |
-10 |
|
| Slope |
0.00125 |
|
| Rrs_slope |
0.000000658477 |
|
| Rrs_offset |
-0.00526782 |
|
| Rrs_unit |
sr^-1 |
|
| Data_description |
Normalized Water Leaving Radiance(NWLR) at 443.0 nm [W/m^2/sr/um] = DN * Slope + Offset; Remote Sensing Reflectance(Rrs) at 443.0 nm [sr^-1] = DN * Rrs_slope + Rrs_offset |
|
| Unit |
W/m^2/sr/um |
|
| Mask_for_statistics |
5087 |
詳細: QA_flag情報(～L3_mask) |
| Spatial_resolution |
250 |
250m または 1km |
| Spatial_resolution_unit |
meter |
|
| Error_DN |
65535 |
|
| Maximum_valid_DN |
65534 |
|
| Minimum_valid_DN |
0 |
|
| Center_wavelength |
443 |
|
| Center_wavelength_unit |
nm |
|
| Band_width |
10 |
|
| Band_width_unit |
nm |
|
| F0 |
1963.39 |
|
| F0_unit |
W/m^2/um |
|
| Dim0 |
Line grids |
|
| Dim1 |
Pixel grids |
|
| NWLR_490 |
NWLR_490
16-bit unsigned integer |
Offset |
-10 |
|
| Slope |
0.00125 |
|
| Rrs_slope |
0.000000644842 |
|
| Rrs_offset |
-0.00515873 |
|
| Rrs_unit |
sr^-1 |
|
| Data_description |
Normalized Water Leaving Radiance(NWLR) at 490.0 nm [W/m^2/sr/um] = DN * Slope + Offset; Remote Sensing Reflectance(Rrs) at 490.0 nm [sr^-1] = DN * Rrs_slope + Rrs_offset |
|
| Unit |
W/m^2/sr/um |
|
| Mask_for_statistics |
5087 |
詳細: QA_flag情報(～L3_mask) |
| Spatial_resolution |
250 |
250m または 1km |
| Spatial_resolution_unit |
meter |
|
| Error_DN |
65535 |
|
| Maximum_valid_DN |
65534 |
|
| Minimum_valid_DN |
0 |
|
| Center_wavelength |
490 |
|
| Center_wavelength_unit |
nm |
|
| Band_width |
10 |
|
| Band_width_unit |
nm |
|
| F0 |
2004.9 |
|
| F0_unit |
W/m^2/um |
|
| Dim0 |
Line grids |
|
| Dim1 |
Pixel grids |
|
| NWLR_530 |
NWLR_530
16-bit unsigned integer |
Offset |
-10 |
|
| Slope |
0.00125 |
|
| Rrs_slope |
0.000000675325 |
|
| Rrs_offset |
-0.0054026 |
|
| Rrs_unit |
sr^-1 |
|
| Data_description |
Normalized Water Leaving Radiance(NWLR) at 530.0 nm [W/m^2/sr/um] = DN * Slope + Offset; Remote Sensing Reflectance(Rrs) at 530.0 nm [sr^-1] = DN * Rrs_slope + Rrs_offset |
|
| Unit |
W/m^2/sr/um |
|
| Mask_for_statistics |
5087 |
詳細: QA_flag情報(～L3_mask) |
| Spatial_resolution |
250 |
250m または 1km |
| Spatial_resolution_unit |
meter |
|
| Error_DN |
65535 |
|
| Maximum_valid_DN |
65534 |
|
| Minimum_valid_DN |
0 |
|
| Center_wavelength |
530 |
|
| Center_wavelength_unit |
nm |
|
| Band_width |
20 |
|
| Band_width_unit |
nm |
|
| F0 |
1914.4 |
|
| F0_unit |
W/m^2/um |
|
| Dim0 |
Line grids |
|
| Dim1 |
Pixel grids |
|
| NWLR_565 |
NWLR_565
16-bit unsigned integer |
Offset |
-10 |
|
| Slope |
0.00125 |
|
| Rrs_slope |
0.000000695552 |
|
| Rrs_offset |
-0.00556441 |
|
| Rrs_unit |
sr^-1 |
|
| Data_description |
Normalized Water Leaving Radiance(NWLR) at 565.0 nm [W/m^2/sr/um] = DN * Slope + Offset; Remote Sensing Reflectance(Rrs) at 565.0 nm [sr^-1] = DN * Rrs_slope + Rrs_offset |
|
| Unit |
W/m^2/sr/um |
|
| Mask_for_statistics |
5087 |
詳細: QA_flag情報(～L3_mask) |
| Spatial_resolution |
250 |
250m または 1km |
| Spatial_resolution_unit |
meter |
|
| Error_DN |
65535 |
|
| Maximum_valid_DN |
65534 |
|
| Minimum_valid_DN |
0 |
|
| Center_wavelength |
565 |
|
| Center_wavelength_unit |
nm |
|
| Band_width |
20 |
|
| Band_width_unit |
nm |
|
| F0 |
1858.73 |
|
| F0_unit |
W/m^2/um |
|
| Dim0 |
Line grids |
|
| Dim1 |
Pixel grids |
|
| NWLR_670 |
NWLR_670
16-bit unsigned integer |
Offset |
-10 |
|
| Slope |
0.00125 |
|
| Rrs_slope |
0.00000083191 |
|
| Rrs_offset |
-0.00665528 |
|
| Rrs_unit |
sr^-1 |
|
| Data_description |
Normalized Water Leaving Radiance(NWLR) at 673.5 nm [W/m^2/sr/um] = DN * Slope + Offset; Remote Sensing Reflectance(Rrs) at 673.5 nm [sr^-1] = DN * Rrs_slope + Rrs_offset |
|
| Unit |
W/m^2/sr/um |
|
| Mask_for_statistics |
5087 |
詳細: QA_flag情報(～L3_mask) |
| Spatial_resolution |
250 |
250m または 1km |
| Spatial_resolution_unit |
meter |
|
| Error_DN |
65535 |
|
| Maximum_valid_DN |
65534 |
|
| Minimum_valid_DN |
0 |
|
| Center_wavelength |
673.5 |
|
| Center_wavelength_unit |
nm |
|
| Band_width |
20 |
|
| Band_width_unit |
nm |
|
| F0 |
1554.07 |
|
| F0_unit |
W/m^2/um |
|
| Dim0 |
Line grids |
|
| Dim1 |
Pixel grids |
|
| PAR |
PAR
16-bit unsigned integer |
Data_description |
Photosynthetically Available Radiation |
|
| Unit |
Ein/m^2/day |
|
| Slope |
0.005 |
|
| Offset |
0 |
|
| Minimum_valid_DN |
0 |
|
| Maximum_valid_DN |
65534 |
|
| Error_DN |
65535 |
|
| Spatial_resolution |
250 |
250m または 1km |
| Spatial_resolution_unit |
meter |
|
| Mask_for_statistics |
1 |
詳細: QA_flag情報(～L3_mask) |
| TAUA_670 |
TAUA_670
16-bit unsigned integer |
Offset |
0 |
|
| Slope |
0.0001 |
|
| Data_description |
Aerosol Optical Thickness(TauA) at 673.5 = DN * Slope + Offset |
|
| Unit |
NA |
|
| Mask_for_statistics |
5087 |
詳細: QA_flag情報(～L3_mask) |
| Spatial_resolution |
250 |
250m または 1km |
| Spatial_resolution_unit |
meter |
|
| Error_DN |
65535 |
|
| Maximum_valid_DN |
65534 |
|
| Minimum_valid_DN |
0 |
|
| Center_wavelength |
673.5 |
|
| Center_wavelength_unit |
nm |
|
| Band_width |
20 |
|
| Band_width_unit |
nm |
|
| Dim0 |
Line grids |
|
| Dim1 |
Pixel grids |
|
| TAUA_865 |
TAUA_865
16-bit unsigned integer |
Offset |
0 |
|
| Slope |
0.0001 |
|
| Data_description |
Aerosol Optical Thickness(TauA) at 868.5 = DN * Slope + Offset |
|
| Unit |
NA |
|
| Mask_for_statistics |
5087 |
詳細: QA_flag情報(～L3_mask) |
| Spatial_resolution |
250 |
250m または 1km |
| Spatial_resolution_unit |
meter |
|
| Error_DN |
65535 |
|
| Maximum_valid_DN |
65534 |
|
| Minimum_valid_DN |
0 |
|
| Center_wavelength |
868.5 |
|
| Center_wavelength_unit |
nm |
|
| Band_width |
20 |
|
| Band_width_unit |
nm |
|
| Dim0 |
Line grids |
|
| Dim1 |
Pixel grids |
|
| Data name |
Attribute |
Remarks |
| Attribute of Image_data |
| Attribute of Image_data |
Number_of_lines |
5980 |
Variable |
| Number_of_pixels |
5000 |
Variable |
| Image_projection |
L1B reference grid |
|
| Grid_interval |
250 |
250m または 1km |
| Grid_interval_unit |
meter |
|
| Line_tai93 |
Line_tai93
64-bit floating-point |
Data_description |
TAI93 at each line |
|
| Unit |
second |
|
| Error_value |
-1 |
|
| Maximum_valid_value |
999999999 |
|
| Minimum_valid_value |
0 |
|
| Dim0 |
L1B-lines |
|
| NWLR_380 |
NWLR_380
16-bit unsigned integer |
Offset |
-10 |
|
| Slope |
0.00125 |
|
| Rrs_slope |
0.00000114454 |
|
| Rrs_offset |
-0.00915631 |
|
| Rrs_unit |
sr^-1 |
|
| Data_description |
Normalized Water Leaving Radiance(NWLR) at 380.0 nm [W/m^2/sr/um] = DN * Slope + Offset; Remote Sensing Reflectance(Rrs) at 380.0 nm [sr^-1] = DN * Rrs_slope + Rrs_offset |
|
| Unit |
W/m^2/sr/um |
|
| Mask_for_statistics |
479 |
詳細: QA_flag情報(～L3_mask) |
| Spatial_resolution |
250 |
250m または 1km |
| Spatial_resolution_unit |
meter |
|
| Error_DN |
65535 |
|
| Maximum_valid_DN |
65534 |
|
| Minimum_valid_DN |
0 |
|
| Center_wavelength |
380 |
|
| Center_wavelength_unit |
nm |
|
| Band_width |
10 |
|
| Band_width_unit |
nm |
|
| F0 |
1129.58 |
|
| F0_unit |
W/m^2/um |
|
| Dim0 |
Line grids |
|
| Dim1 |
Pixel grids |
|
| NWLR_412 |
NWLR_412
16-bit unsigned integer |
Offset |
-10 |
|
| Slope |
0.00125 |
|
| Rrs_slope |
0.000000730075 |
|
| Rrs_offset |
-0.0058406 |
|
| Rrs_unit |
sr^-1 |
|
| Data_description |
Normalized Water Leaving Radiance(NWLR) at 412.0 nm [W/m^2/sr/um] = DN * Slope + Offset; Remote Sensing Reflectance(Rrs) at 412.0 nm [sr^-1] = DN * Rrs_slope + Rrs_offset |
|
| Unit |
W/m^2/sr/um |
|
| Mask_for_statistics |
479 |
詳細: QA_flag情報(～L3_mask) |
| Spatial_resolution |
250 |
250m または 1km |
| Spatial_resolution_unit |
meter |
|
| Error_DN |
65535 |
|
| Maximum_valid_DN |
65534 |
|
| Minimum_valid_DN |
0 |
|
| Center_wavelength |
412 |
|
| Center_wavelength_unit |
nm |
|
| Band_width |
10 |
|
| Band_width_unit |
nm |
|
| F0 |
1770.84 |
|
| F0_unit |
W/m^2/um |
|
| Dim0 |
Line grids |
|
| Dim1 |
Pixel grids |
|
| NWLR_443 |
NWLR_443
16-bit unsigned integer |
Offset |
-10 |
|
| Slope |
0.00125 |
|
| Rrs_slope |
0.000000658477 |
|
| Rrs_offset |
-0.00526782 |
|
| Rrs_unit |
sr^-1 |
|
| Data_description |
Normalized Water Leaving Radiance(NWLR) at 443.0 nm [W/m^2/sr/um] = DN * Slope + Offset; Remote Sensing Reflectance(Rrs) at 443.0 nm [sr^-1] = DN * Rrs_slope + Rrs_offset |
|
| Unit |
W/m^2/sr/um |
|
| Mask_for_statistics |
479 |
詳細: QA_flag情報(～L3_mask) |
| Spatial_resolution |
250 |
250m または 1km |
| Spatial_resolution_unit |
meter |
|
| Error_DN |
65535 |
|
| Maximum_valid_DN |
65534 |
|
| Minimum_valid_DN |
0 |
|
| Center_wavelength |
443 |
|
| Center_wavelength_unit |
nm |
|
| Band_width |
10 |
|
| Band_width_unit |
nm |
|
| F0 |
1963.39 |
|
| F0_unit |
W/m^2/um |
|
| Dim0 |
Line grids |
|
| Dim1 |
Pixel grids |
|
| NWLR_490 |
NWLR_490
16-bit unsigned integer |
Offset |
-10 |
|
| Slope |
0.00125 |
|
| Rrs_slope |
0.000000644842 |
|
| Rrs_offset |
-0.00515873 |
|
| Rrs_unit |
sr^-1 |
|
| Data_description |
Normalized Water Leaving Radiance(NWLR) at 490.0 nm [W/m^2/sr/um] = DN * Slope + Offset; Remote Sensing Reflectance(Rrs) at 490.0 nm [sr^-1] = DN * Rrs_slope + Rrs_offset |
|
| Unit |
W/m^2/sr/um |
|
| Mask_for_statistics |
479 |
詳細: QA_flag情報(～L3_mask) |
| Spatial_resolution |
250 |
250m または 1km |
| Spatial_resolution_unit |
meter |
|
| Error_DN |
65535 |
|
| Maximum_valid_DN |
65534 |
|
| Minimum_valid_DN |
0 |
|
| Center_wavelength |
490 |
|
| Center_wavelength_unit |
nm |
|
| Band_width |
10 |
|
| Band_width_unit |
nm |
|
| F0 |
2004.9 |
|
| F0_unit |
W/m^2/um |
|
| Dim0 |
Line grids |
|
| Dim1 |
Pixel grids |
|
| NWLR_530 |
NWLR_530
16-bit unsigned integer |
Offset |
-10 |
|
| Slope |
0.00125 |
|
| Rrs_slope |
0.000000675325 |
|
| Rrs_offset |
-0.0054026 |
|
| Rrs_unit |
sr^-1 |
|
| Data_description |
Normalized Water Leaving Radiance(NWLR) at 530.0 nm [W/m^2/sr/um] = DN * Slope + Offset; Remote Sensing Reflectance(Rrs) at 530.0 nm [sr^-1] = DN * Rrs_slope + Rrs_offset |
|
| Unit |
W/m^2/sr/um |
|
| Mask_for_statistics |
479 |
詳細: QA_flag情報(～L3_mask) |
| Spatial_resolution |
250 |
250m または 1km |
| Spatial_resolution_unit |
meter |
|
| Error_DN |
65535 |
|
| Maximum_valid_DN |
65534 |
|
| Minimum_valid_DN |
0 |
|
| Center_wavelength |
530 |
|
| Center_wavelength_unit |
nm |
|
| Band_width |
20 |
|
| Band_width_unit |
nm |
|
| F0 |
1914.4 |
|
| F0_unit |
W/m^2/um |
|
| Dim0 |
Line grids |
|
| Dim1 |
Pixel grids |
|
| NWLR_565 |
NWLR_565
16-bit unsigned integer |
Offset |
-10 |
|
| Slope |
0.00125 |
|
| Rrs_slope |
0.000000695552 |
|
| Rrs_offset |
-0.00556441 |
|
| Rrs_unit |
sr^-1 |
|
| Data_description |
Normalized Water Leaving Radiance(NWLR) at 565.0 nm [W/m^2/sr/um] = DN * Slope + Offset; Remote Sensing Reflectance(Rrs) at 565.0 nm [sr^-1] = DN * Rrs_slope + Rrs_offset |
|
| Unit |
W/m^2/sr/um |
|
| Mask_for_statistics |
479 |
詳細: QA_flag情報(～L3_mask) |
| Spatial_resolution |
250 |
250m または 1km |
| Spatial_resolution_unit |
meter |
|
| Error_DN |
65535 |
|
| Maximum_valid_DN |
65534 |
|
| Minimum_valid_DN |
0 |
|
| Center_wavelength |
565 |
|
| Center_wavelength_unit |
nm |
|
| Band_width |
20 |
|
| Band_width_unit |
nm |
|
| F0 |
1858.73 |
|
| F0_unit |
W/m^2/um |
|
| Dim0 |
Line grids |
|
| Dim1 |
Pixel grids |
|
| NWLR_670 |
NWLR_670
16-bit unsigned integer |
Offset |
-10 |
|
| Slope |
0.00125 |
|
| Rrs_slope |
0.00000083191 |
|
| Rrs_offset |
-0.00665528 |
|
| Rrs_unit |
sr^-1 |
|
| Data_description |
Normalized Water Leaving Radiance(NWLR) at 673.5 nm [W/m^2/sr/um] = DN * Slope + Offset; Remote Sensing Reflectance(Rrs) at 673.5 nm [sr^-1] = DN * Rrs_slope + Rrs_offset |
|
| Unit |
W/m^2/sr/um |
|
| Mask_for_statistics |
479 |
詳細: QA_flag情報(～L3_mask) |
| Spatial_resolution |
250 |
250m または 1km |
| Spatial_resolution_unit |
meter |
|
| Error_DN |
65535 |
|
| Maximum_valid_DN |
65534 |
|
| Minimum_valid_DN |
0 |
|
| Center_wavelength |
673.5 |
|
| Center_wavelength_unit |
nm |
|
| Band_width |
20 |
|
| Band_width_unit |
nm |
|
| F0 |
1554.07 |
|
| F0_unit |
W/m^2/um |
|
| Dim0 |
Line grids |
|
| Dim1 |
Pixel grids |
|
| PAR |
PAR
16-bit unsigned integer |
Data_description |
Photosynthetically Available Radiation |
|
| Unit |
Ein/m^2/day |
|
| Slope |
0.005 |
|
| Offset |
0 |
|
| Minimum_valid_DN |
0 |
|
| Maximum_valid_DN |
65534 |
|
| Error_DN |
65535 |
|
| Spatial_resolution |
250 |
250m または 1km |
| Spatial_resolution_unit |
meter |
|
| Mask_for_statistics |
1 |
詳細: QA_flag情報(～L3_mask) |
| TAUA_670 |
TAUA_670
16-bit unsigned integer |
Offset |
0 |
|
| Slope |
0.0001 |
|
| Data_description |
Aerosol Optical Thickness(TauA) at 673.5 = DN * Slope + Offset |
|
| Unit |
NA |
|
| Mask_for_statistics |
479 |
詳細: QA_flag情報(～L3_mask) |
| Spatial_resolution |
250 |
250m または 1km |
| Spatial_resolution_unit |
meter |
|
| Error_DN |
65535 |
|
| Maximum_valid_DN |
65534 |
|
| Minimum_valid_DN |
0 |
|
| Center_wavelength |
673.5 |
|
| Center_wavelength_unit |
nm |
|
| Band_width |
20 |
|
| Band_width_unit |
nm |
|
| Dim0 |
Line grids |
|
| Dim1 |
Pixel grids |
|
| TAUA_865 |
TAUA_865
16-bit unsigned integer |
Offset |
0 |
|
| Slope |
0.0001 |
|
| Data_description |
Aerosol Optical Thickness(TauA) at 868.5 = DN * Slope + Offset |
|
| Unit |
NA |
|
| Mask_for_statistics |
479 |
詳細: QA_flag情報(～L3_mask) |
| Spatial_resolution |
250 |
250m または 1km |
| Spatial_resolution_unit |
meter |
|
| Error_DN |
65535 |
|
| Maximum_valid_DN |
65534 |
|
| Minimum_valid_DN |
0 |
|
| Center_wavelength |
868.5 |
|
| Center_wavelength_unit |
nm |
|
| Band_width |
20 |
|
| Band_width_unit |
nm |
|
| Dim0 |
Line grids |
|
| Dim1 |
Pixel grids |
|
| Data name |
Attribute |
Remarks |
| Attribute of Image_data |
| Attribute of Image_data |
Number_of_lines |
5980 |
Variable |
| Number_of_pixels |
5000 |
Variable |
| Image_projection |
L1B reference grid |
|
| Grid_interval |
250 |
250m または 1km |
| Grid_interval_unit |
meter |
|
| Line_tai93 |
Line_tai93
64-bit floating-point |
Data_description |
TAI93 at each line |
|
| Unit |
second |
|
| Error_value |
-1 |
|
| Maximum_valid_value |
999999999 |
|
| Minimum_valid_value |
0 |
|
| Dim0 |
L1B-lines |
|
| NWLR_380 |
NWLR_380
16-bit unsigned integer |
Offset |
-10 |
|
| Slope |
0.00125 |
|
| Rrs_slope |
0.00000114454 |
|
| Rrs_offset |
-0.00915631 |
|
| Rrs_unit |
sr^-1 |
|
| Data_description |
Normalized Water Leaving Radiance(NWLR) at 380.0 nm [W/m^2/sr/um] = DN * Slope + Offset; Remote Sensing Reflectance(Rrs) at 380.0 nm [sr^-1] = DN * Rrs_slope + Rrs_offset |
|
| Unit |
W/m^2/sr/um |
|
| Mask_for_statistics |
287 |
詳細: QA_flag情報(～L3_mask) |
| Spatial_resolution |
250 |
250m または 1km |
| Spatial_resolution_unit |
meter |
|
| Error_DN |
65535 |
|
| Maximum_valid_DN |
65534 |
|
| Minimum_valid_DN |
0 |
|
| Center_wavelength |
380 |
|
| Center_wavelength_unit |
nm |
|
| Band_width |
10 |
|
| Band_width_unit |
nm |
|
| F0 |
1129.58 |
|
| F0_unit |
W/m^2/um |
|
| Dim0 |
Line grids |
|
| Dim1 |
Pixel grids |
|
| NWLR_412 |
NWLR_412
16-bit unsigned integer |
Offset |
-10 |
|
| Slope |
0.00125 |
|
| Rrs_slope |
0.000000730075 |
|
| Rrs_offset |
-0.0058406 |
|
| Rrs_unit |
sr^-1 |
|
| Data_description |
Normalized Water Leaving Radiance(NWLR) at 412.0 nm [W/m^2/sr/um] = DN * Slope + Offset; Remote Sensing Reflectance(Rrs) at 412.0 nm [sr^-1] = DN * Rrs_slope + Rrs_offset |
|
| Unit |
W/m^2/sr/um |
|
| Mask_for_statistics |
287 |
詳細: QA_flag情報(～L3_mask) |
| Spatial_resolution |
250 |
250m または 1km |
| Spatial_resolution_unit |
meter |
|
| Error_DN |
65535 |
|
| Maximum_valid_DN |
65534 |
|
| Minimum_valid_DN |
0 |
|
| Center_wavelength |
412 |
|
| Center_wavelength_unit |
nm |
|
| Band_width |
10 |
|
| Band_width_unit |
nm |
|
| F0 |
1770.84 |
|
| F0_unit |
W/m^2/um |
|
| Dim0 |
Line grids |
|
| Dim1 |
Pixel grids |
|
| NWLR_443 |
NWLR_443
16-bit unsigned integer |
Offset |
-10 |
|
| Slope |
0.00125 |
|
| Rrs_slope |
0.000000658477 |
|
| Rrs_offset |
-0.00526782 |
|
| Rrs_unit |
sr^-1 |
|
| Data_description |
Normalized Water Leaving Radiance(NWLR) at 443.0 nm [W/m^2/sr/um] = DN * Slope + Offset; Remote Sensing Reflectance(Rrs) at 443.0 nm [sr^-1] = DN * Rrs_slope + Rrs_offset |
|
| Unit |
W/m^2/sr/um |
|
| Mask_for_statistics |
287 |
詳細: QA_flag情報(～L3_mask) |
| Spatial_resolution |
250 |
250m または 1km |
| Spatial_resolution_unit |
meter |
|
| Error_DN |
65535 |
|
| Maximum_valid_DN |
65534 |
|
| Minimum_valid_DN |
0 |
|
| Center_wavelength |
443 |
|
| Center_wavelength_unit |
nm |
|
| Band_width |
10 |
|
| Band_width_unit |
nm |
|
| F0 |
1963.39 |
|
| F0_unit |
W/m^2/um |
|
| Dim0 |
Line grids |
|
| Dim1 |
Pixel grids |
|
| NWLR_490 |
NWLR_490
16-bit unsigned integer |
Offset |
-10 |
|
| Slope |
0.00125 |
|
| Rrs_slope |
0.000000644842 |
|
| Rrs_offset |
-0.00515873 |
|
| Rrs_unit |
sr^-1 |
|
| Data_description |
Normalized Water Leaving Radiance(NWLR) at 490.0 nm [W/m^2/sr/um] = DN * Slope + Offset; Remote Sensing Reflectance(Rrs) at 490.0 nm [sr^-1] = DN * Rrs_slope + Rrs_offset |
|
| Unit |
W/m^2/sr/um |
|
| Mask_for_statistics |
287 |
詳細: QA_flag情報(～L3_mask) |
| Spatial_resolution |
250 |
250m または 1km |
| Spatial_resolution_unit |
meter |
|
| Error_DN |
65535 |
|
| Maximum_valid_DN |
65534 |
|
| Minimum_valid_DN |
0 |
|
| Center_wavelength |
490 |
|
| Center_wavelength_unit |
nm |
|
| Band_width |
10 |
|
| Band_width_unit |
nm |
|
| F0 |
2004.9 |
|
| F0_unit |
W/m^2/um |
|
| Dim0 |
Line grids |
|
| Dim1 |
Pixel grids |
|
| NWLR_530 |
NWLR_530
16-bit unsigned integer |
Offset |
-10 |
|
| Slope |
0.00125 |
|
| Rrs_slope |
0.000000675325 |
|
| Rrs_offset |
-0.0054026 |
|
| Rrs_unit |
sr^-1 |
|
| Data_description |
Normalized Water Leaving Radiance(NWLR) at 530.0 nm [W/m^2/sr/um] = DN * Slope + Offset; Remote Sensing Reflectance(Rrs) at 530.0 nm [sr^-1] = DN * Rrs_slope + Rrs_offset |
|
| Unit |
W/m^2/sr/um |
|
| Mask_for_statistics |
287 |
詳細: QA_flag情報(～L3_mask) |
| Spatial_resolution |
250 |
250m または 1km |
| Spatial_resolution_unit |
meter |
|
| Error_DN |
65535 |
|
| Maximum_valid_DN |
65534 |
|
| Minimum_valid_DN |
0 |
|
| Center_wavelength |
530 |
|
| Center_wavelength_unit |
nm |
|
| Band_width |
20 |
|
| Band_width_unit |
nm |
|
| F0 |
1914.4 |
|
| F0_unit |
W/m^2/um |
|
| Dim0 |
Line grids |
|
| Dim1 |
Pixel grids |
|
| NWLR_565 |
NWLR_565
16-bit unsigned integer |
Offset |
-10 |
|
| Slope |
0.00125 |
|
| Rrs_slope |
0.000000695552 |
|
| Rrs_offset |
-0.00556441 |
|
| Rrs_unit |
sr^-1 |
|
| Data_description |
Normalized Water Leaving Radiance(NWLR) at 565.0 nm [W/m^2/sr/um] = DN * Slope + Offset; Remote Sensing Reflectance(Rrs) at 565.0 nm [sr^-1] = DN * Rrs_slope + Rrs_offset |
|
| Unit |
W/m^2/sr/um |
|
| Mask_for_statistics |
287 |
詳細: QA_flag情報(～L3_mask) |
| Spatial_resolution |
250 |
250m または 1km |
| Spatial_resolution_unit |
meter |
|
| Error_DN |
65535 |
|
| Maximum_valid_DN |
65534 |
|
| Minimum_valid_DN |
0 |
|
| Center_wavelength |
565 |
|
| Center_wavelength_unit |
nm |
|
| Band_width |
20 |
|
| Band_width_unit |
nm |
|
| F0 |
1858.73 |
|
| F0_unit |
W/m^2/um |
|
| Dim0 |
Line grids |
|
| Dim1 |
Pixel grids |
|
| NWLR_670 |
NWLR_670
16-bit unsigned integer |
Offset |
-10 |
|
| Slope |
0.00125 |
|
| Rrs_slope |
0.00000083191 |
|
| Rrs_offset |
-0.00665528 |
|
| Rrs_unit |
sr^-1 |
|
| Data_description |
Normalized Water Leaving Radiance(NWLR) at 673.5 nm [W/m^2/sr/um] = DN * Slope + Offset; Remote Sensing Reflectance(Rrs) at 673.5 nm [sr^-1] = DN * Rrs_slope + Rrs_offset |
|
| Unit |
W/m^2/sr/um |
|
| Mask_for_statistics |
287 |
詳細: QA_flag情報(～L3_mask) |
| Spatial_resolution |
250 |
250m または 1km |
| Spatial_resolution_unit |
meter |
|
| Error_DN |
65535 |
|
| Maximum_valid_DN |
65534 |
|
| Minimum_valid_DN |
0 |
|
| Center_wavelength |
673.5 |
|
| Center_wavelength_unit |
nm |
|
| Band_width |
20 |
|
| Band_width_unit |
nm |
|
| F0 |
1554.07 |
|
| F0_unit |
W/m^2/um |
|
| Dim0 |
Line grids |
|
| Dim1 |
Pixel grids |
|
| PAR |
PAR
16-bit unsigned integer |
Data_description |
Photosynthetically Available Radiation |
|
| Unit |
Ein/m^2/day |
|
| Slope |
0.005 |
|
| Offset |
0 |
|
| Minimum_valid_DN |
0 |
|
| Maximum_valid_DN |
65534 |
|
| Error_DN |
65535 |
|
| Spatial_resolution |
250 |
250m または 1km |
| Spatial_resolution_unit |
meter |
|
| Mask_for_statistics |
1 |
詳細: QA_flag情報(～L3_mask) |
| TAUA_670 |
TAUA_670
16-bit unsigned integer |
Offset |
0 |
|
| Slope |
0.0001 |
|
| Data_description |
Aerosol Optical Thickness (AOT) at 673.5 nm (TAUA_670) = DN * Slope + Offset:
TAUA_670 is estimated by the ocean color atmospheric correction algorithm (O2AB) with embedded aerosol model set. The set was defined in aim at best performance in water reflectance retrieval and was not necessarily tuned for AOT estimation. The validation results of TAUA_670 show that the estimated TAUA_670 is biased against in situ data set. The systematic bias of TAUA_670 estimate can be corrected by the following equation;
TAUA_670_corrected = 0.910 * TAUA_670 + 0.0.
|
|
| Unit |
NA |
|
| Mask_for_statistics |
287 |
詳細: QA_flag情報(～L3_mask) |
| Spatial_resolution |
250 |
250m または 1km |
| Spatial_resolution_unit |
meter |
|
| Error_DN |
65535 |
|
| Maximum_valid_DN |
65534 |
|
| Minimum_valid_DN |
0 |
|
| Center_wavelength |
673.5 |
|
| Center_wavelength_unit |
nm |
|
| Band_width |
20 |
|
| Band_width_unit |
nm |
|
| Dim0 |
Line grids |
|
| Dim1 |
Pixel grids |
|
| TAUA_865 |
TAUA_865
16-bit unsigned integer |
Offset |
0 |
|
| Slope |
0.0001 |
|
| Data_description |
Aerosol Optical Thickness (AOT) at 868.5 nm (TAUA_865) = DN * Slope + Offset:
TAUA_865 is estimated by the ocean color atmospheric correction algorithm (O2AB) with embedded aerosol model set. The set was defined in aim at best performance in water reflectance retrieval and was not necessarily tuned for AOT estimation. The validation results of TAUA_865 show that the estimated TAUA_865 is biased against in situ data set. The systematic bias of TAUA_865 estimate can be corrected by the following equation;
TAUA_865_corrected = 0.822 * TAUA_865 + 0.0.
|
|
| Unit |
NA |
|
| Mask_for_statistics |
287 |
詳細: QA_flag情報(～L3_mask) |
| Spatial_resolution |
250 |
250m または 1km |
| Spatial_resolution_unit |
meter |
|
| Error_DN |
65535 |
|
| Maximum_valid_DN |
65534 |
|
| Minimum_valid_DN |
0 |
|
| Center_wavelength |
868.5 |
|
| Center_wavelength_unit |
nm |
|
| Band_width |
20 |
|
| Band_width_unit |
nm |
|
| Dim0 |
Line grids |
|
| Dim1 |
Pixel grids |
|
