Sensor
Main Specifications of SGLI
The Second-Generation Global Imager (SGLI), which is a successor of the Global Imager (GLI) aboard ADEOS-II, is an optical sensor capable of multi-channel observation at wavelengths from near-UV to the thermal infrared wavelength. (380nm to 12µm)
SGLI consists of two radiometer components, the Visible and Near Infrared Radiometer (SGLI-VNR) and the Infrared Scanner (SGLI-IRS). SGLI-VNR is capable of observing polarized and unpolarized radiances.

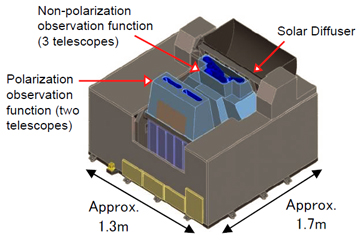

Visible and Near Infrared Radiometer (VNR)
| Non-polarization nadir view (11ch) | Polarization/along-track slant view (2ch) |
|---|---|
| spatial resolution: 250m, swath: 1150km |
spatial resolution: 1km, swath: 1150km |

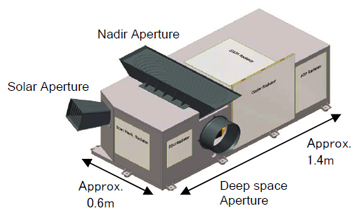

Infrared Scanner (IRS)
| Shortwave infrared (SWI:4ch) | Thermal infrared (TIR:2ch) |
|---|---|
| spatial resolution: 250m/1km, swath: 1400km |
spatial resolution: 250m, swath: 1400km |
glossary
| SGLI | Second generation GLobal Imager |
|---|---|
| VNR | Visible and Near Infrared Radiometer |
| IRS | Infrared Scanner |
| SWI | ShortWave Infrared |
| TIR | Thermal InfraRed |
